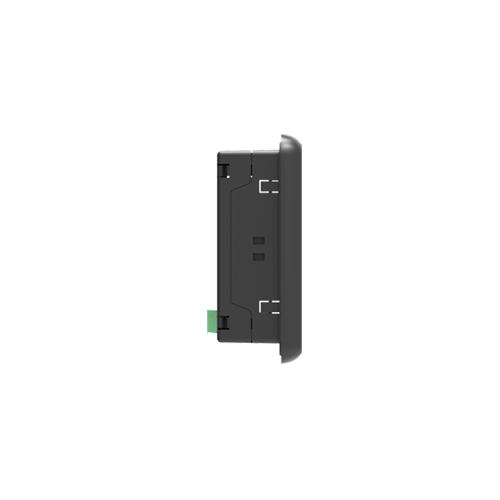

HGM8140 military genset controller, integrated digitization, intelligentization, and networking technology, adopts “Main Control and Display “separated type mode. It is suitable for single unit automation and monitoring system to achieve automatic start/stop, data measurement, alarm protection as well as remote control, remote measurement and remote communication functions. HGM8140 controller, can be worked in (-40℃~+70℃), has LCD display, selectable Chinese, English and other languages interface, and it is reliable and easy to use. It is with SAE J1939 interface that can communicate with a number of ECU (ENGINE CONTROL UNIT) which equip with J1939.
HGM8140 controller adopt micro-processor technology with precision parameters measuring, fixed value adjustment, time setting and set value adjusting and etc..Majority parameters can be configured from front panel, and all parameters can be configured by USB interface (or RS485, ETHERNET) to adjust via PC. It can be widely used in all types of automatic gen-set control system with compact structure, advanced circuits, simple connections and high reliability.

PERFORMANCE AND CHARACTERISTICS
HGM8140 military controller: ASM(Aotomatic Start module), it controls generator to start/stop by detecting DC input voltages or remote start signals.
HGM8140 controller contains two modules: HGM8140M (host module) and HGM8140D (display module). Two modules are communicate with each other by RS232 or CAN BUS port.
HGM8140M(host module): it is used for collecting genset parameters, monitoring and protecting genset, and realizing genset auto start /stop function.
HGM8140D(display module): it is used for displaying genset’s parameters, adjusting parameters and controlling genset by the keys on the front panel of controller.
