HGM8100N series genset controllers are especially designed for extremely high/low temperature environment (-40~+70)°C. The controllers can operate reliably in extreme temperature conditions with the help of VFD display or LCD and the components that resist extreme temperature. Controller has strong ability of anti-electromagnetic interference, can be used under complex electromagnetic interference environment. It is easy to maintain and upgrade due to the plug-in terminal. All display information is Chinese (also can be set as English or other languages).

HGM8100N series genset controllers integrate digitization, intelligentization and network technology which are used for genset automation and monitor control system of single unit to achieve automatic start/stop, data measurement, alarm protection and “three remote” functions (remote control, remote measuring and remote communication).

HGM8100N series genset controllers adopt 32-bit micro-processor technology with precision parameters measuring, fixed value adjustment, time setting and set value adjusting and etc. Majority parameters can be configured from front panel, and all parameters can be configured by PC via RS485 interface or ETHERNET to adjust and monitor. It can be widely used in all types of automatic genset control system with compact structure, advanced circuits, simple connections and high reliability.



MOUDLES COMPARISON

HGM8100N series controllers include HGM8110V, HGM8120V, HGM8110LT, HGM8120LT, HGM8110CAN and HGM8120CAN.

HGM8110N been collectively named of HGM8110V, HGM8110LT and HGM8110CAN.

HGM8120N been collectively named of HGM8120V, HGM8120LT and HGM8120CAN.

HGM8120CAN VFD+AMF+RS485+ETHERNET+GSM+J1939

SKU: 13
Delivery within 20 working days PRE-ORDER LIMIT at least 30 pieces

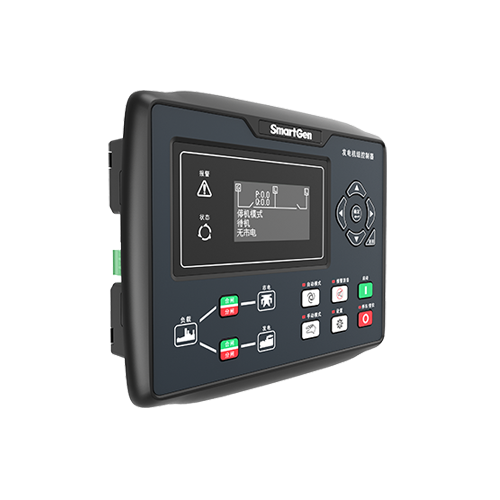

  • HGM8120CAN

    VFD+AMF+RS485+ETHERNET+GSM+J1939

    Working PowerRange : DC(8-35)V

    Overall Dimension : 242*186*53

    Installation Dimension : 214*160

    Working Temperature : (-40~+70)

    weight : 0.85
