HAT160 ATS Controller is suitable for CB ATS of single motor with different capacities. It can accurately detect 2-way voltages of 3-phase 4-wire/single-phase 2-wire and make accurate judgment for occurred voltage abnormal (such as, over voltage, under voltage, over frequency, under frequency and loss of phase), then control ATS transfer after delay. When ATS switch gets abnormal, controller can detect close/open failure and indicates alarm on the front panel to ensure the correct action of ATS. If I# power gets abnormal, controller can send signal to start genset. Controller can realize remote communication, remote control and parameter configuration functions via LINK port communication.

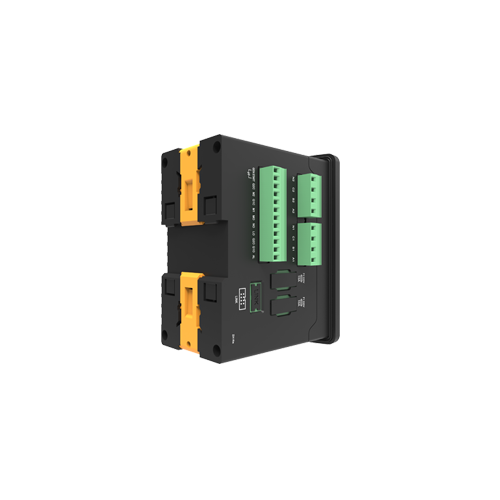

HAT160 One Motor Operation
HAT160
One Motor Operation
Working PowerRange : AC(170-277)V
Overall Dimension : 86.9*158*119.5
Installation Dimension : 73.5*144
Working Temperature : (-25~+70)℃
weight : 0.6kg
