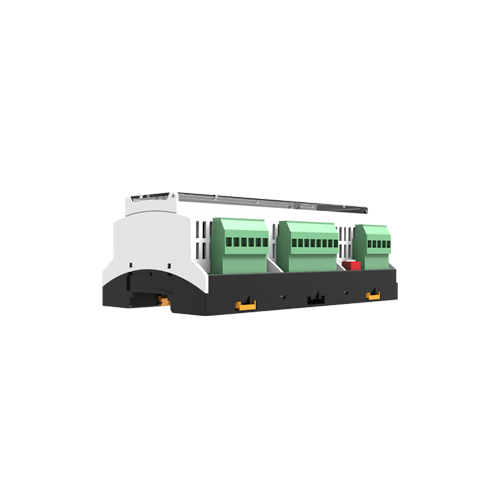

DOUT16B-2 Digital Output Module is an expansion module which has 16 auxiliary digital output channels. Expansion module status is transmitted to DOUT16B-2 by main control board via RS485.

Technical Parameters
Items
Contents
Working Voltage
DC8.0V~ DC35.0V continuous power supply
Power Consumption
<6W
Aux. relay output port 1-16
10A relay for output port 1~4, 7~14.
16A relay for output port 5~6, 15~16.
Case Dimension
161.6mm x 89.7mm x 60.7mm
Installation Way
35mm guide-rail installation or screw installation
Working Conditions
Temperature: (-25~+70)℃   Humidity: (20~93)%RH
Storage Conditions
Temperature: (-30~+80)℃
Weight
0.4kg
